Exclusive, patented ruby-orifice nozzles
Cold Fog® systems use our exclusive, patented ruby-orifice nozzles for creating extremely fine water particles droplets, 1-15 microns, that create very little pressure drop and can be designed to humidify & cool to the theoretical limit. Once placed in service, the fog system automatically regulates water-flow based temperature/humidity signals.
Brass or ordinary stainless steel drilled-orifice nozzles have a relative life, since the passage of water under high pressure will easily enlarge the orifice in a short period of use. Nozzle wear is characterized by an increase in nozzle flow, followed by a general deterioration of the spray pattern, increased droplet size and loss of system efficiency. Cold Fog® ruby-orifice nozzles have a 20 year Unconditional Orifice-Wear Warranty. Useful service life is 35 years.
Our Cold Fog® Portfolio
Why Ruby-Orifice Nozzles
Brass or ordinary stainless steel drilled-orifice nozzles have a relative life, since the passage of water under high pressure will easily enlarge the orifice in a short period of use. Nozzle wear is characterized by an increase in nozzle flow, followed by a general deterioration of the spray pattern, increased droplet size and loss of system efficiency. Cold Fog ® ruby-orifice nozzles have Lifetime Unconditional Orifice-Wear Warranty.
Benefits of Cold Fog®
- Increased gas turbine power output 10-12%
- Improved gas turbine thermal efficiency 2-3%
- Reduces NOx emission rate
- High evaporation efficiency, up to 99%
- Suppress dust deposition on compressor blades*
- Lower capital outlay
- Lower operating and maintenance cost
- Ease of installation
Exclusive PatentAtomizing Systems Inc., manufacturer of the world’s only ruby-orifice fog nozzles made in the USA. The Cold Fog ® nozzle ruby orifice is laser-drilled to a tolerance of 0.0002 to ensure consistent spray quality, and the ruby swaged into the nozzle body is never blown out under 4000 psi.
Lifetime GuaranteeThe vastly superior characteristics of the ruby orifice enable us to offer the only lifetime guarantee against orifice wear in the world. It maintains critical fog droplet diameters and precise flow rates long after the original installation. Cold Fog ® technology is the solution to maintenance free high quality fog.
“Our misting system has been performing flawlessly since its installation in our Costa Rica biome 15 years ago. It is a critical-path component for the environment’s plants and animals.
It was such a pleasure to speak with Atomizing Systems engineers today and realize how proud they are of the quality of their designs.”
Cleveland Botanical Garden
Director of Facilities
New Development Adds Humidity and Cooling

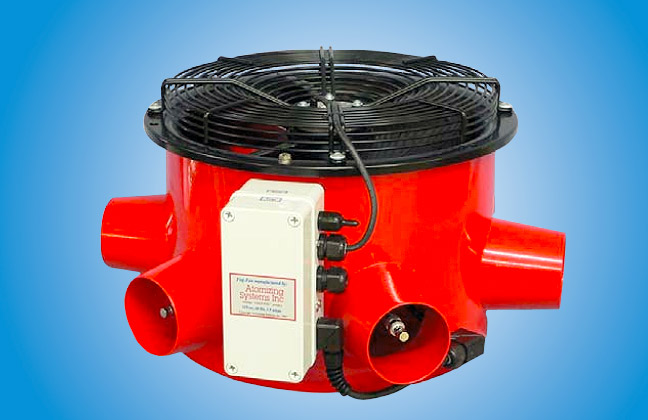

The FF-609 Fog-Fan™ by Atomizing Systems Inc., is a silver winner of the 2009 Dealer Design Awards that honors products in components in accessories each year is easy for a technician to install while providing installation flexibility. A circular, high-pressure, six-nozzle, air-driven fogging unit adds humidity in areas where injection within an air handler or ceiling is not possible.
Perfect Fog, Every Time. Cold Fog®
